PATRIOT GELCOAT SYSTEMS

  • Unique Patriot™ Pumping System.
  • Catalyst to resin variances less than 1%.
  • Lower production costs.
  • Versatile modular components.
  • Available in Internal & External Mix configurations.

This precision is the tool used to correct many of the quality issues, such as porosity, pre-release, post curing, cracking, alligatoring, inconsistent thickness and more that currently face composites manufacturers.

The Patriot™ Gelcoat Systems feature a deep induction heat hardened Fluid Section which is then coated with a thick hard chrome layer to increase the wear characteristics of the system, allowing it to run for longer periods.

Both the Fluid Section and Catalyst Pump on Patriot™ feature the new “self-healing” seal that has the lowest coefficients of friction available today.  This seal does not require packing adjustments, and greatly reduces the problems associated with heat build-up and wear.

Patriot™ Systems are built with modular components to create the optimum configuration for your needs and keeps you running.  Utilising quick change components extends the system life and allows for little or no down time.  The major components change out in 10 minutes or less.

Choose your preference: available in internal and external mix configurations that both deliver versatile and precise gelcoat performance.

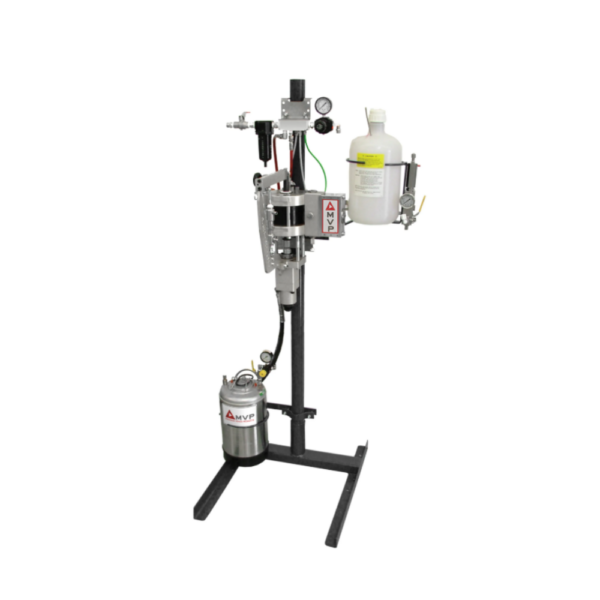

PATRIOT ™ GELCOAT SYSTEM

Output Capabilities:  approximately 1 – 6 lbs./min. (.45 – 2.7 kg/min.)
Catalyst Percentage:  0.75% to 2.5% by volume
Air Consumption:  18 CFM (142 – 198 L/min.)
Displacement:  2.45 in.3 (40.15 cc)/stroke or 4.90 in.3 (80.3 cc)/cycle
Pump Ratio:  5″ Powerhead, 15:1 – 7″ Powerhead 30:1
Maximum Air Input Pressure: 100 psi (7 bar, 0.7 MPa)

PATRIOT ™ MULTI-COLOR SYSTEM

Output Capabilities: approximately 1.5-7 lbs/min (.85 – 3.4 kg/min)
Catalyst Percentage:  0.75% to 2.5% by volume
Pump Ratio: 15:1
Maximum Air Input Pressure: 100 psi (7 bar, 0.7 MPa)
