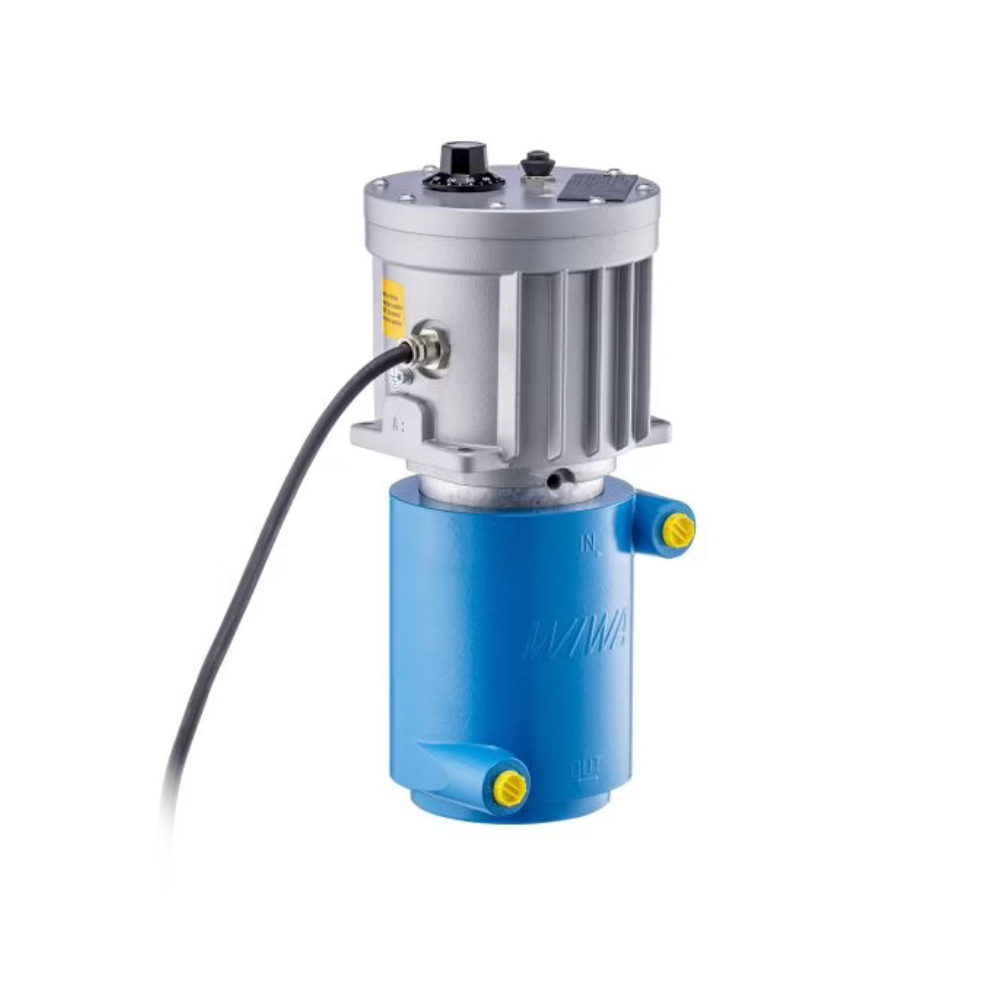

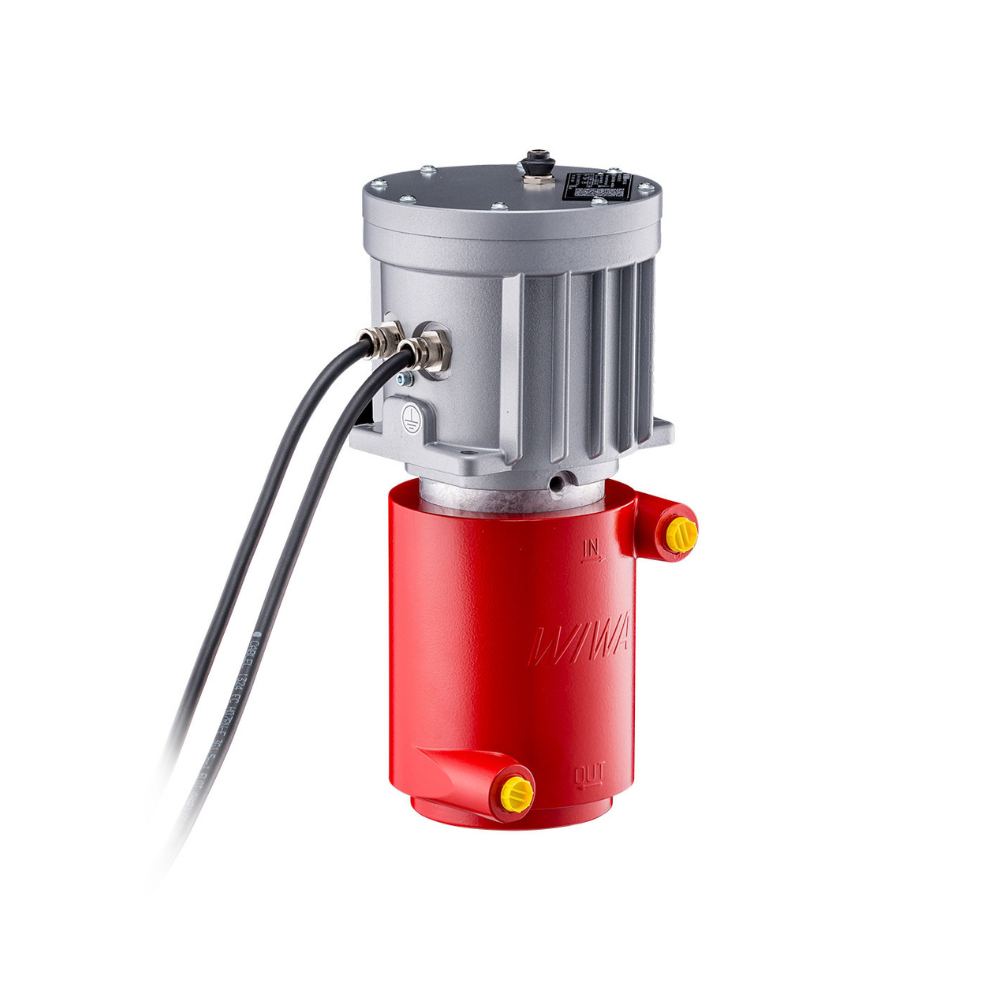

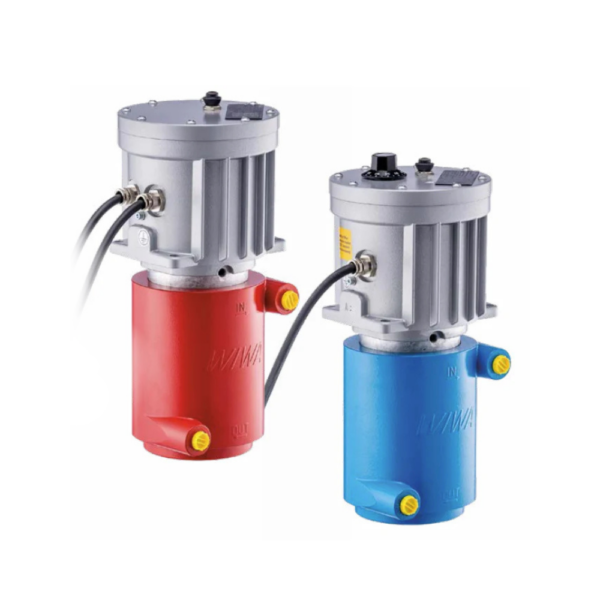

The WIWA Material Fluid Heater maintains a stable spraying temperature for high‑viscosity, high‑solids materials supporting film build and finish quality. ATEX 2014/34/EU models (T4) are rated up to 500 bar and use stainless‑steel wetted parts, with options like an insulation jacket and remote thermostat control.
The Material Fluid Heater is a strong fit for hot-spraying systems where coatings need higher film builds, short drying periods, and consistent surface quality – especially when working with extremely viscous materials. In hot-spray processes, the material is heated to the desired spraying temperature using the WIWA material flow heater, helping reduce reliance on solvents to lower viscosity while maintaining an even coating temperature via circulation. It’s also positioned as an effective addition for cold working environments and injection applications, maintaining consistent temperature for injection materials and supporting faster reaction times when heat is required.
|
FEATURE
|
DESCRIPTION
|
|---|---|
|
ATEX-approved for hazardous areas (T4)
|
Approved to ATEX Directive 2014/34/EU with T4 temperature classification, and ATEX versions available for Zone I applications.
|
|
High-pressure performance (up to 500 bar)
|
Built for demanding high-pressure setups with a maximum working pressure of 500 bar / 7250 ps
|
|
Stainless-steel wetted parts
|
All fluid-contact components are stainless steel, supporting durability and compatibility with coatings handled in hot-spray processes.
|
|
Service-friendly heat exchanger
|
Designed for practical uptime: the heat exchanger is simple to replace, with flexible positioning of the heat-exchanger connections.
|
|
Process control options for consistent results
|
Optional remote thermostat control, insulation jacket, and accessory options (e.g., temperature display, return control valve) help fine-tune temperature stability and efficiency.
|
|
Built for outdoor and high-humidity environments
|
Improved weather resistance extends use in challenging site and environmental conditions.
|
|
Supports heated-air functionality for spray guns
|
Includes air passages designed to heat air for spray guns (where required by the application setup).
|
