High Volume Duo Injection System

Category:

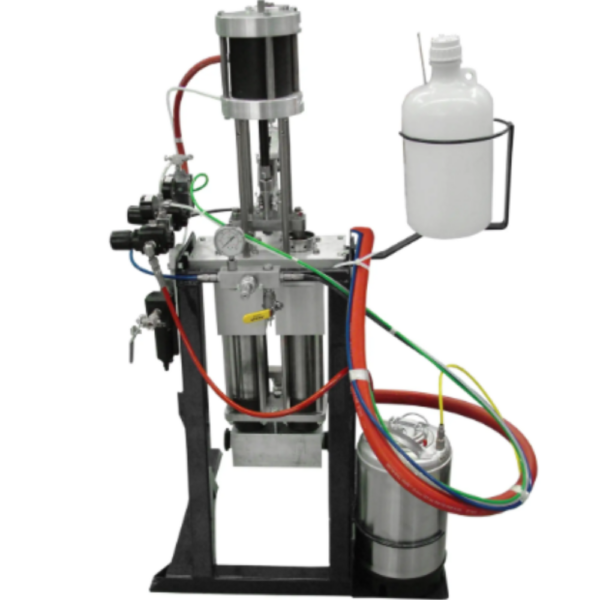

High Volume Duo Injection System

The High Volume Duo Injection System features precise, proven metering technology, reliable high volume flow, automatic Pro Gun  for consistent internal mix delivery, the lowest mix/meter percentage at plus/minus 0.01%.

Options

  • Manual or Auto High-Volume Gun options.
  • CFH-4000 Heater – Double Stack.
  • Auto-level control.
  • Pneumatic PV Sensor.
  • Heater Control.
  • CE Guard.
  • HV Turbo Auto Sprue.
  • Patriot ™ Innovator Plus PLC Option.



Output Capabilities: approx. approx. 60lbs./min. (6 gal/min or 22 litre/min)
Air Consumption: 18 CFM
Pump Ratio:
  10:1

Maximum Air input Pressure: 100 psi
