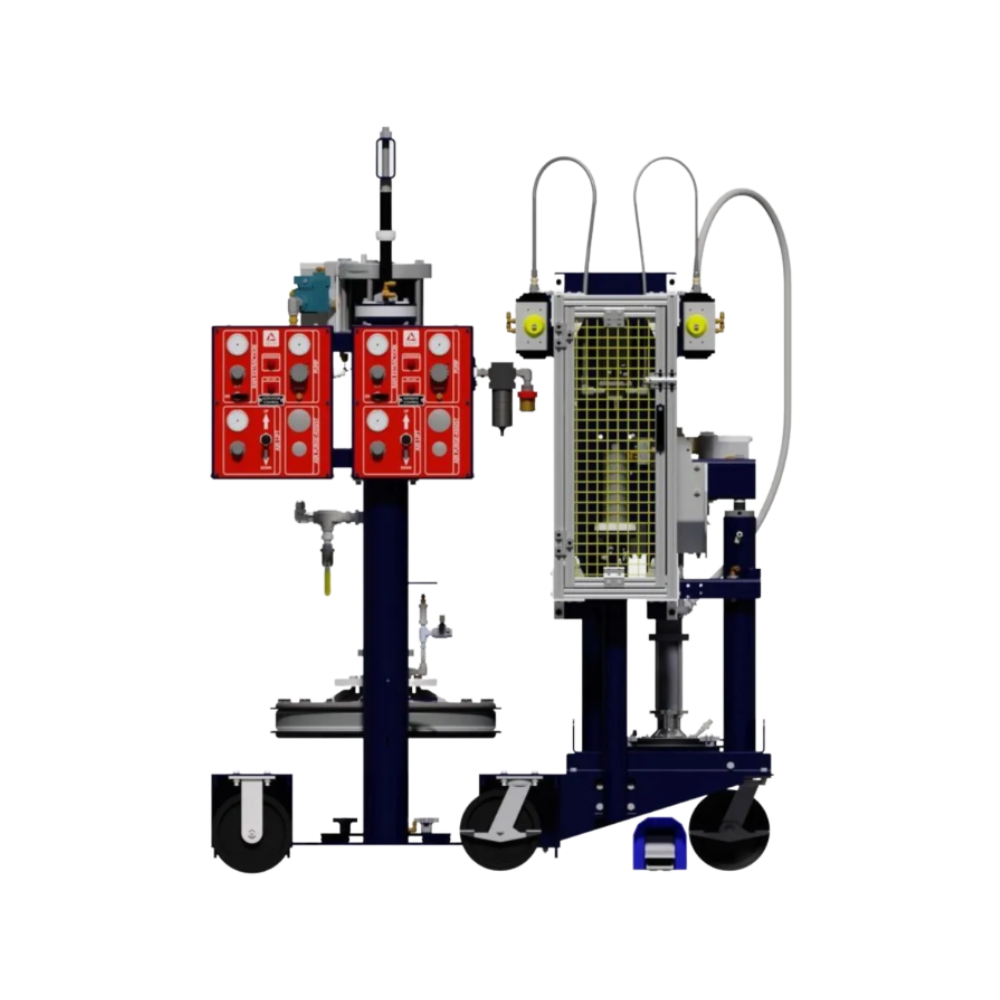

Cartridge Filling Station

CARTRIDGE FILLING STATION

  • Cartridge dispensing technology for bulk material.
  • Dispenses most non-spacer bead adhesives with a viscosity between 40,000 and 1,400,000 cps.
  • Fills up to three 10:1 cartridges per minute.
  • Gives customers freedom to continue using their current adhesive or sealant without the constraints of material packaging.



Output Capabilities (pour): 1 lb/min – 3 lbs/min (.452 kgs/min – 1.35 kgs/min)
Catalyst: 10:1 & 1:1
Air Consumption: 25 – 30 CFM (0.7-0.8 m3/min)
Pump Ratio: 23.1
Max. Air Input: 100PSI 9 (7 Bar)
