Material and accelerator pumps are linked together ensuring proper mix ratio is being achieved in a repeatable manner. This provides manufacturers consistent working times, improving production output and limiting rework. Each system is capable of dispensing adhesive materials at variable mix ratios. Different configurations give users the ability to choose the proper output no matter the amount of material needed.

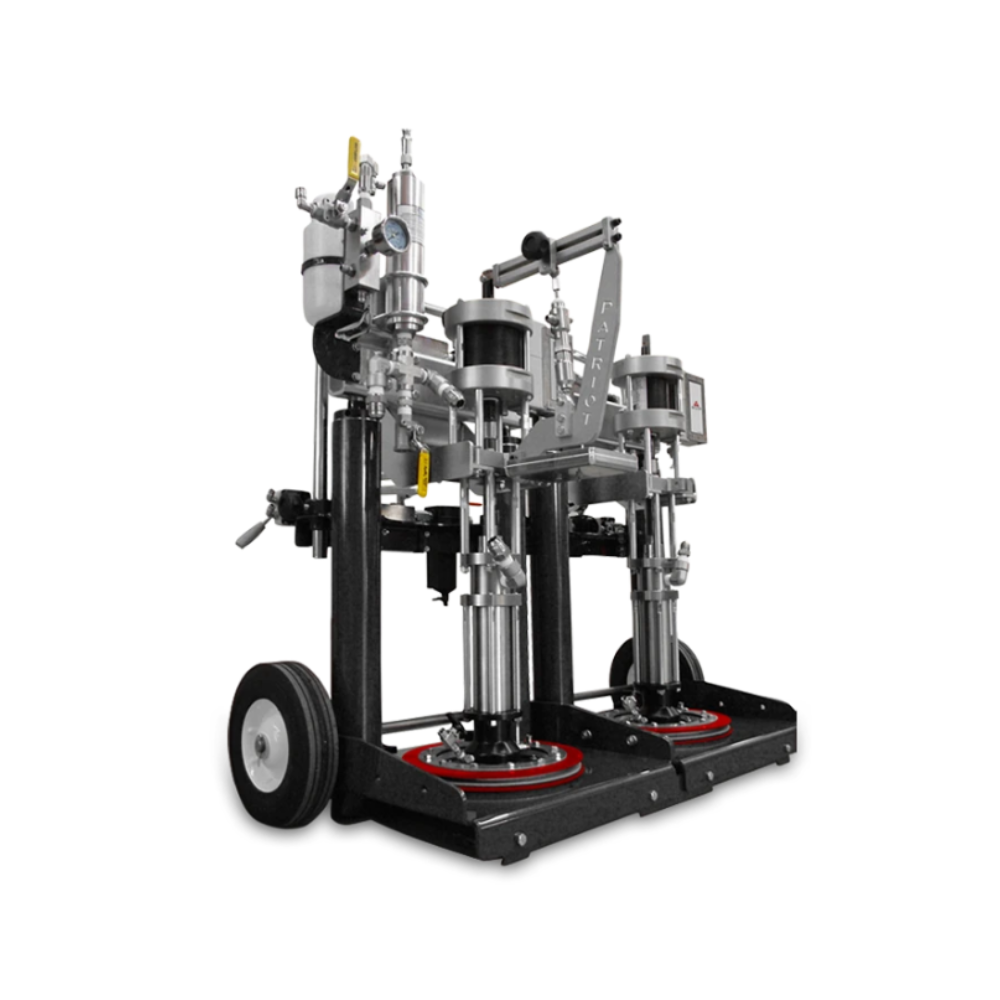

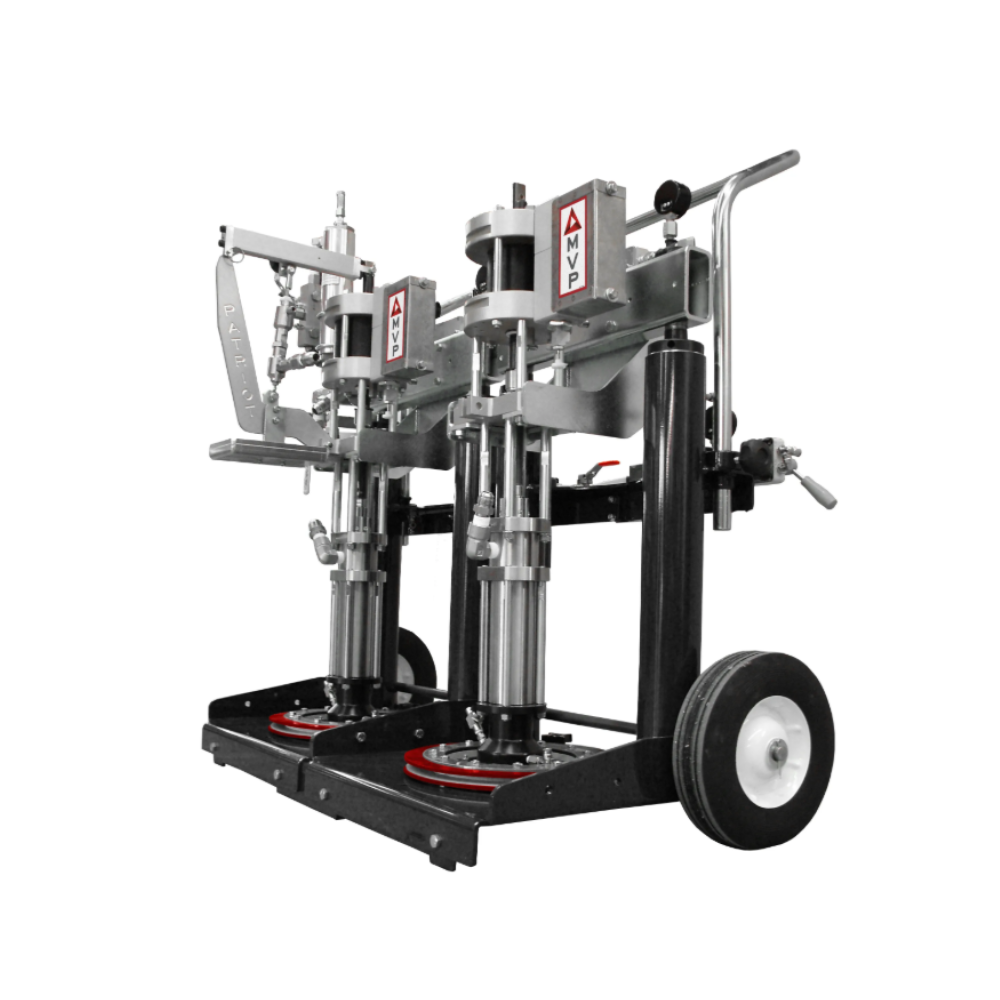

The MVP 10:1 Adhesive Systems combine accurate metering with a robust pump design to keep production running and help reduce downtime. The material and accelerator pumps are mechanically linked, helping maintain a repeatable mix ratio that supports consistent working times, improved output, and reduced rework. Built for flexibility, the platform can dispense at variable mix ratios (7:1–19.6:1 by volume) and is offered in 5‑gallon and 55‑gallon configurations so users can match output to daily material demand. In Patriot™ configurations, system features commonly include Chop Check fluid sections, double‑acting piston pumps, no gear pumps, and stainless components such as transfer/catalyst pumps and an UltraBond gun, supporting rugged, straightforward operation.
Output Capabilities: approximately 1 lb/min – 4 lbs/min (.45 kgs/min – 1.8 kgs/min)
Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min)
Mix Ratio Range: 7:1 – 19.6:1 by volume
Available Pump Ratio: 23:1
Max Air Input Pressure: 100 psi (7 bar)
Output Capabilities: approximately 1 lbs/min – 16 lbs/min (0.452 kgs/min – 7.3 kgs/min)
Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min)
Mix Ratio Range: 7:1 – 19.6:1 by volume
Available Pump Ratio: 23:1 & 30:1
Max Air Input Pressure: 100 psi (7 bar)
Have more questions about the 10:1 Adhesive Systems or need product support?
